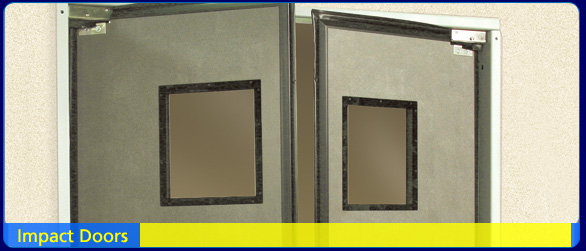

ImpacDor® RD-175

The Aleco® ImpacDor® RD-175 is a durable, lightweight, attractive impact door with insulated panel and full perimeter seal ideal for rack, push cart and pallet jack traffic.

The Aleco® ImpacDor® RD-175 is designed for effortless swing using the EZ Hinge stainless steel upper hinge and 8 ¾"H lower jamb guard.

The Aleco RD-175 is constructed from rigid sub-frames ultrasonically welded to the 1/8" thick ABS facings available in 12 colors. The internal closed cell foam insulation provides an R-value of 7.5.

The Aleco RD-175 is constructed without wood, glue or rivets and is ideal for wash down applications when ordered with the single pane window option.

Superior Perimeter Seal Design for a Superior Seal

The Aleco RD-175 features a fully replaceable perimeter seal including the leading edge of each panel.

Leading edge seals are extruded from USDA and FDA accepted Neoprene material.

Ideal for any application where a durable, tight sealing, insulated, energy saving door is desired.

Dual Pane Windows

The Aleco RD-175 windows feature sealed dual pane construction for superior insulation qualities. Window panes are 1/8" clear polycarbonate mounted in ABS frames for long-term durability.

The Perfect Retail Door

The Aleco RD-175 is ideal for food service, food processing, retail, supermarket and light industrial applications. The total panel thickness is 1 ¾" and is custom constructed to your requirements +/- 1/8" of actual net opening width and height.

The RD-175 provides smooth, quiet and easy double-action opening up to 125° in either direction so the door swings out of traffic’s way without over extending the hinge.

Magna Impact Door

Available Colors

Note: Colors are digitally shown and may vary from actual color. Please request product sample for true color representation.

*some doors may not be available in all colors.

Available Options

  • Molded polyethylene tear-drop bumpers up to 48" tall
  • ABS or 18 gauge stainless steel
  • Impact panels up to 48" tall
  • Window options available (including single pane for washdown applications)

PDFSales Sheet

PDFSpec Sheet

PDF Word CSI Specifications

PDF dwg Architectural Drawing

Installation Guides

Installation Guide

pdf3 Piece Frames

uses

Food Service

Retail Stores

Pharmaceutical and Medical Facilities

Light Industrial

features

Lightweight, insulated full thickness 1-¾" (44mm) impact door

Internal extruded framework uses no wood

Ultrasonically welded ABS facings—no adhesive, screws or rivets

Closed cell foam insulation

EZ hinge hardware provides 125° degree swing in both directions

Easy installation

Low maintenance

Stainless steel EZ hinge with 8-3/4" high × 3" wide deep jamb guards
