JetStream™ Air Curtain by Aleco |
 |
|

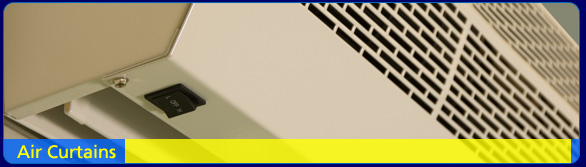

The Aleco Energy-Saving JetStream™
Air Curtain
produces a high-speed air barrier, dividing areas into two independent temperature zones. Levels of interior air conditioning/ heating are maintained, increasing comfort and saving energy.
-
Prevents loss of cool or warm air
-
Steel cabinet with durable beige baked enamel finish or stainless steel
-
Dust and insect-control
-
Protects against entry of smoke and noxious fumes
-
Available in 36”, 42”, 48” and 60” models
-
Low 8.5” clearance
-
Easy to Install hardware
-
All metal blowers
|
|
Jet Stream™ Air Curtain Applications: |
|
Aleco JetStream™ Air Curtain Features:
-
3-position switch (off/high/low)
-
Available in beige baked enamel finish or stainless steel
-
UL listed
-
Adjustable airflow with directional plenum
-
Bracket for mounting
-
5 ft. long 110v prewired grounded plug
-
For cooler/freezer use, mount on warm side
-
Effective up to 8 ft. heights
-
Not recommended for outdoor use
|
 |
|
ENAMEL COATED MODEL TECHNICAL SPECIFICATIONS |
MOTOR SPECIFICATIONS |
Part Number |
Unit Size (L x W X H) |
Volt/Freq (V/Hz) |
Input Power (W) |
Avg. Air Velocity |
Max Air Velocity |
Air Vol. (cfm) |
Noise (dB) |
Net Weight
(lbs) |
Current (A) |
Power (KW) |
RPM |
Horsepower |
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
475009 |
36" x 8.5" 10" |
110~
120/60 |
350 |
345 |
2260 FPM |
2560 FPM |
890 |
740 |
60 |
58 |
31 |
3.00 |
0.35 |
1400 |
0.47 |
475010 |
42" x 8.5" 10" |
500 |
495 |
950 |
790 |
60 |
58 |
33 |
3.74 |
0.50 |
1400 |
0.67 |
475012 |
48" x 8.5" 10" |
600 |
595 |
1365 |
1135 |
61 |
59 |
37 |
5.25 |
0.60 |
1400 |
0.80 |
475015 |
60" x 8.5" 10" |
670 |
665 |
1660 |
1385 |
62 |
60 |
44 |
5.75 |
0.67 |
1400 |
0.90 |
|
STAINLESS STEEL MODEL TECHNICAL SPECIFICATIONS |
MOTOR SPECIFICATIONS |
Part Number |
Unit Size (L x W x H) |
Volt/Freq
(V/Hz) |
Input Power |
Avg. Air Velocity |
Max. Air Velocity |
Air Vol (cfm) |
Noise (dB) |
et Weight
(lbs) N |
Current (A) |
Power (KW) |
RPM |
Horsepower |
Hi |
Lo |
Hi |
Lo |
Hi |
Lo |
475018 |
36" x 8.5" x 10' |
110~
120/60 |
500 |
495 |
2850 FPM |
3150 FPM |
1210 |
990 |
69 |
67 |
43 |
3.74 |
0.50 |
1600 |
0.67 |
475021 |
42" x 8.5" x 10' |
650 |
645 |
1355 |
1100 |
71 |
69 |
48 |
5.40 |
0.65 |
1600 |
0.87 |
475024 |
48" x 8.5" x 10' |
650 |
645 |
1860 |
1515 |
73 |
71 |
53 |
5.40 |
0.65 |
1600 |
0.87 |
475027 |
60" x 8.5" x 10' |
800 |
795 |
2325 |
1890 |
75 |
73 |
62 |
6.80 |
0.80 |
1600 |
1.00 |
|
NOTE: Two units may be wired together for wider openings. |
ONE YEAR WARRANTY:
Call for details. |
AIR CURTAIN DIMENSIONS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
36" |
1 3/16" |
11 7/16" |
22" |
--- |
2" |
13/16" |
1/8" |
8 1/2" |
5 1/4" |
42" |
11 7/16" |
22" |
--- |
48" |
17" |
10 5/8" |
17" |
60" |
22 7/16" |
10 5/8" |
22 7/16" |
|
| |
